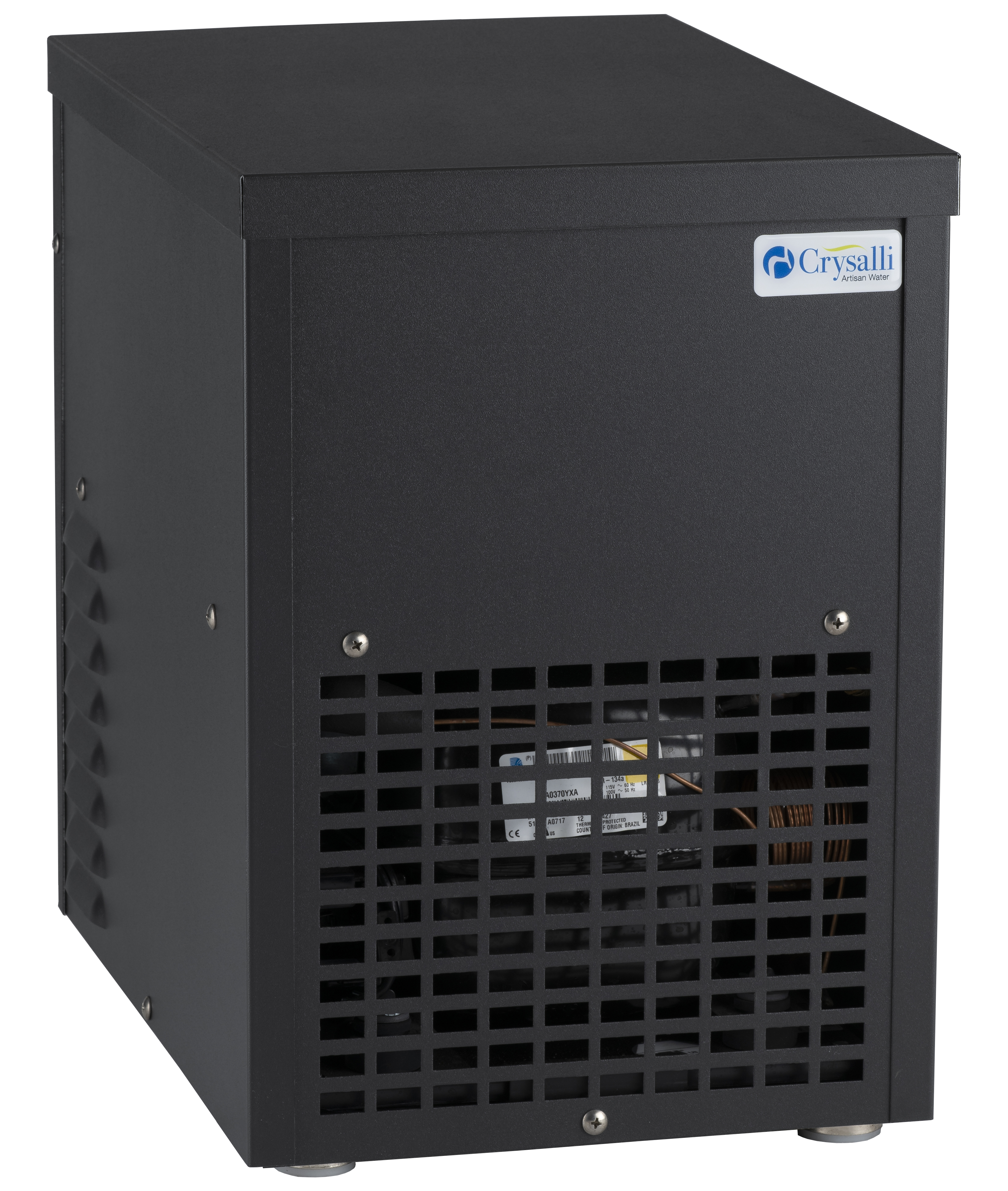

Low-Volume Undercounter Chilled Still Water Chiller
Low-volume undercounter chiller built to deliver chilled still water from a compact, self-contained unit.
Designed for installation up to 6 feet from the draft tower.
Suitable for offices, hotel suites, wineries, and residential settings where discreet placement and reliable chilled performance matter.
Key Features
Performance & Capability
- Delivers chilled still water from a dedicated undercounter unit
- Produces up to 50 12-ounce drinks per hour at temperatures below 40°F
- Built-in re-circulatory pump supports installation up to 6 feet between the tower and chiller
- High-efficiency self-contained refrigeration supports consistent chilled dispense
- Well suited for lower-volume hospitality and residential applications
Design & Build
- Compact undercounter footprint for discreet installation
- Copper water chilling coil
- Designed for use with CBR-V1 series draft tower and drain pan
- Rear exhaust with side-panel air intake for proper ventilation planning
- Self-contained format supports a cleaner install in tight spaces
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 50 12-ounce drinks per hour at <40°F |
| Beverage Type | Chilled still water |
| Installation | Undercounter, up to 6' from draft tower |
| Refrigeration | Self-contained |
| Refrigerant | R290 |
| Electrical | 120V - 2.42 Amps |
| Operating Temperature | 40°F-100°F |
| Water Bath | 2.5 gallons |
| Ice Bank | 6 lbs |
| Width | 11.75" |
| Depth | 17.5" |
| Height | 16.5" |
| Weight | 75 lbs |
| Chilling Coil | Copper |
| Ideal Applications | Offices, hotel suites, wineries, residential |
Accessories & Options
- Water filter system: CR-14FC or CR-14FCP
- Install kit: CR-KIT-CPUC
- Use with CBR-V1 series draft tower and drain pan
